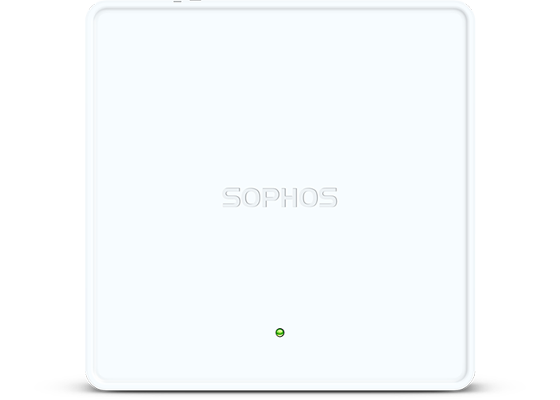

Sophos APX 120 Access Point
Entry-level 2x2:2 access point for budget-sensitive projects with basic connectivity requirements

Sophos APX 120 Access Point

Customer's Please Note: A Wireless Protection subscription is required for all Sophos Access Points

Sophos Wireless
Sophos Access Point
USA: FREE Ground ShippingSophos APX 120 Access Point (FCC) plain, no power adapter/PoE Injector
2x2 MIMO, dual radio, internal antennas, Includes mounting bracket for wall and/or 15/16"T-bar or flat ceiling, 5-Year warranty, no extended warranty available, 11.8W max. power consumption (802.3af PoE injector required)
#A120TCHNF
List Price: $170.00
Add to Cart to see sale price!
Sophos Central Wireless Standard (for APX)
Central Wireless Standard (for APX) - 1 Access Points - 1 Year
#CWSA1CSAA
List Price: $75.00
Add to Cart to see sale price!
Central Wireless Standard (for APX) - 1 Access Points - 2 Year
#CWSA2CSAA
List Price: $113.00
Add to Cart to see sale price!
Central Wireless Standard (for APX) - 1 Access Points - 3 Year
#CWSA3CSAA
List Price: $150.00
Add to Cart to see sale price!

More pricing below, click here!

Overview:

Sophos APX Series

Models are available for cloud-management in Sophos Central and on-premises management via XG Firewall.

The Sophos APX Series is a growing portfolio of access points with 802.11ac Wave 2 technology. They are custom-built for increased throughput at load and better performance and security.

APX Series – Product Benefits

  • Sophos Central only: Security Heartbeat™ ready to connect with other Sophos Central managed products*
  • Significant performance improvement over legacy 802.11ac Wave 1 models
  • Optimized for both wall- and ceiling-mount (diverse mounting kits available)
  • 5-year warranty as standard, Advance Replacement RMA included in Sophos Wireless Standard subscription

APX 740 – our flagship 4x4:4 product for high-density, high-capacity environments

APX 530 – high-performance 3x3:3 access point for typical office environments of all sizes

APX 320 – 2x2:2 access point, dual 5 GHz capable, ideal in high-density school environments or small retail scenarios

APX 120 – Sophos Central only: entry-level 2x2:2 access point for budget-sensitive projects with basic connectivity requirements

Highlights

  • Managed from Sophos Central
  • Superior visibility into wireless health
  • Simple deployment and administration
  • Synchronized Security-ready
  • Enhanced security with rogue AP detection
  • Multi-site management and cloud scalability

Features:

Manage all your security on a single platform

Sophos Central is a scalable management platform which gives you a single pane of glass for all of your cloud-managed security solutions. Using Sophos Central, you can manage Sophos Wireless on its own, or alongside your Endpoint, Mobile, Email, Encryption and Server Protection.

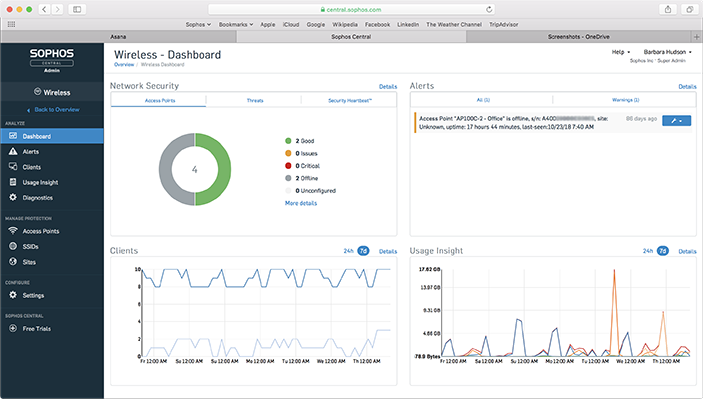

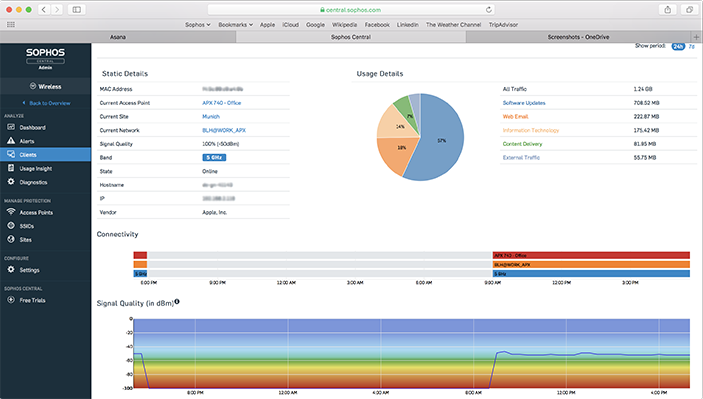

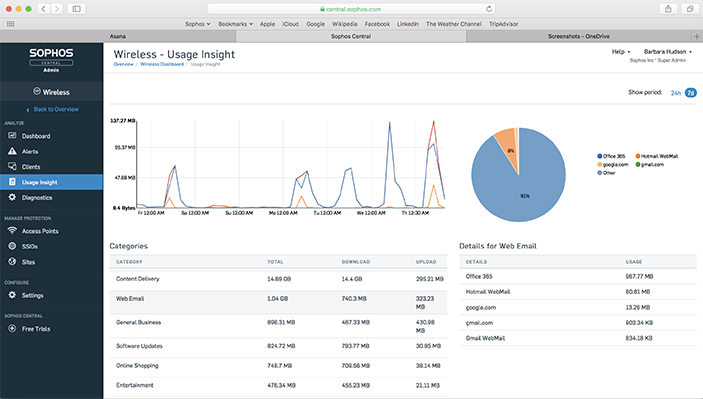

Superior visibility into wireless health

All the key information about the health of your wireless networks and connecting clients is directly at your fingertips. With visibility into potential threats, such as rogue APs, insight into clients with compliance or connectivity issues and advanced diagnostics, identifying and troubleshooting issues is quick and easy.

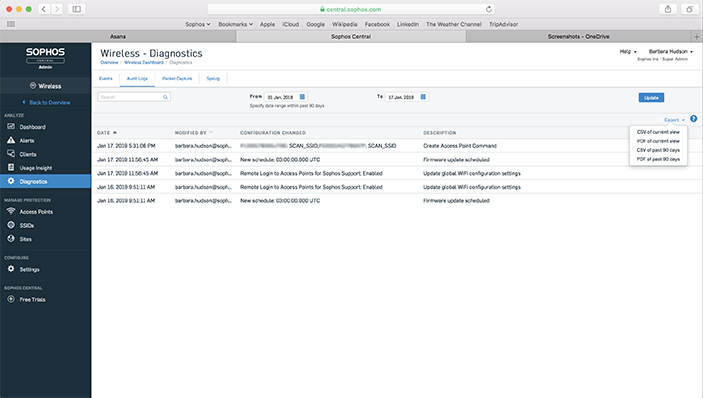

Simple deployment and administration

Using the step-by-step guidance in our on-boarding wizard, creating networks, registering one or more access points, and adding sites is child’s play. Our solution is built to be simple to use, even for non-wireless experts, but that doesn’t mean you forfeit functionality. Schedule firmware upgrades to keep your network up to date and benefit from new features and enhancements in every release.

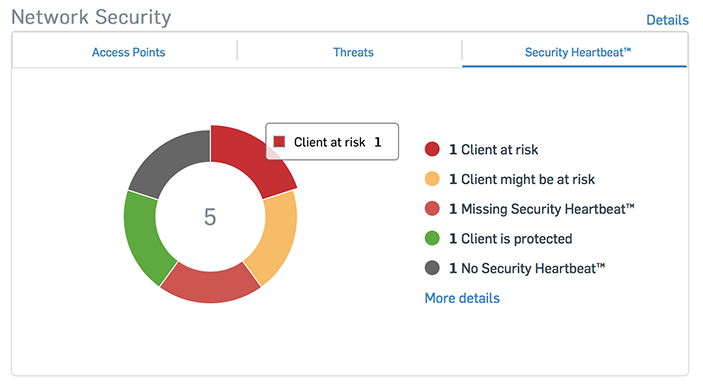

Intelligence connected with Security Heartbeat™

When using our Security Heartbeat™ enabled APX Series access points, you can monitor the health status of any Sophos Central-managed endpoint or mobile device and so automatically restrict web access on trusted Wi-Fi networks. Users with serious compliance issues see a splash screen to alert them to their walled garden status but receive full connectivity again, once health is restored.

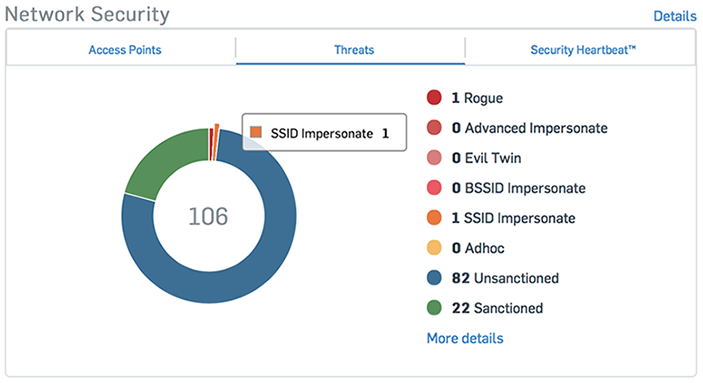

Security enhanced for your trusted Wi-Fi networks

Our Enhanced Rogue AP Detection classifies neighboring Wi-Fi networks to identify threats and prevent attempts to infiltrate an organization via Wi-Fi.

Additionally, you can keep your networks secure by providing controlled internet access and hotspots for visitors, contractors, and other guests on your network. Use enterprise-grade backend authentication for a seamless user experience.

Multi-site management and cloud scalability

Whether you have just one growing network, or multiple sites, extending your Wi-Fi is as simple as adding an additional access point.

Unboxing Video:

Unboxing the Sophos APX Series Access Points

Join us as we unbox one of our brand new Sophos APX Series access points. The APX Series is a growing portfolio of Synchronized Security ready access points. With 802.11ac Wave 2 technology, they are custom-built for increased throughput at load and better performance and security. Oh, and they look GREAT.

Specifications:

Sophos APX 120 Back View

mount. future use) future use) future use)
  APX 120 APX 320 APX 530 APX 740
Management Cloud: Sophos Central Cloud: Sophos Central
On-premises: Sophos XG Firewall – v17.5.3
Deployment Indoor; desktop, wall, or ceiling mount.
Mounting Kits Included: Bracket for wall- and/or 15/16” T-bar or flat ceiling mount. Included: Bracket for wall- and/or 15/16", 9/16", 3/8" T-bar ceiling-mount.
Optional: Kits for flat ceiling, plenum and suspend
WLAN Standards 802.11 a/b/g/n/ac Wave 2
Radios 1x 2.4 GHz single band
1x 5 GHz single band
1x 2.4 GHz/5 GHz dual-band
1x 5 GHz single band
1x Bluetooth low energy (BLE)
1x 2.4 GHz single band
1x 5 GHz single band
1x Bluetooth low energy (BLE)
Antennas 2x internal dual-band antenna for Radio-1 and 2 2x internal dual-band antenna for Radio-1
2x internal 5 GHz antenna for Radio-2
1x internal 2.4 GHz antenna for BLE (for
3x internal 2.4 GHz antenna for Radio-1
3x internal 5 GHz antenna for Radio-2
1x internal 2.4 GHz antenna for BLE (for
4x internal 2.4 GHz antenna for Radio-1
4x internal 5 GHz antenna for Radio-2
1x internal 2.4 GHz antenna for BLE (for
DFS
Performance 2x2:2 MU-MIMO 2x2:2 MU-MIMO 3x3:3 MU-MIMO 4x4:4 MU-MIMO
Max. Throughput 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) 867 Mbps (5 GHz) + 867 Mbps (5 GHz) 1300 Mbps (5 GHz) + 450 Mbps (2.4 GHz) 1733 Mbps (5 GHz) + 600 Mbps (2.4 GHz)
Interfaces 1x 12V DC-in 1x RJ45 10/100/1000 Ethernet w/PoE 1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet w/PoE
1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet port
1x RJ45 10/100/1000 Ethernet w/PoE
Power (Max.) 11.8 W 11.5 W 16.7 W 22.4 W
Power-over-Ethernet (Min.) PoE 802.3af PoE+ 802.3at
Dimensions 144x144x33.5 mm 155x155x38 mm 183x183x39 mm 195x195x43 mm
Weight 0.256 kg 0.474 kg 0.922 kg 1.012 kg
Certifications & Compliance** CB, UL, CE, FCC, ISED (IC), RCM, MIC, Anatel, EN 60601-1-2 (Medical Equipment Directive) CB, UL, CE, FCC, ISED (IC), RCM, MIC, NCC, Anatel (planned), EN 60601-1-2 (Medical Equipment Directive) Plenum-rated (UL2043) CB, UL, CE, FCC, ISED (IC), RCM, Anatel (planned), EN 60601-1-2 (Medical Equipment Directive) Plenum-rated (UL2043) CB, UL, CE, FCC, ISED (IC), RCM, Anatel (planned), EN 60601-1-2 (Medical Equipment Directive) Plenum-rated (UL2043)
Warranty All APX models have a standard 5-year warranty included in the purchase price
Support A Sophos Central Wireless Standard Subscription for APX includes Enhanced Support with Advance Replacement RMA

Documentation:

Download the Sophos APX Series Access Points Data Sheet (PDF).

* APX Series access points enable basic Synchronized Security functionality with Sophos Endpoint, Sophos Mobile and Sophos Server when managed through Sophos Central. Sophos XG Firewall offers advanced Synchronized Security functionality with Sophos Endpoint and Sophos Server independent of the use of the Wireless Protection features.

** Not all models may be available in all regions, please check with your local supplier for details. APX models are currently not sold in China.
